LED DISPLAY
INTERACTIVE PANEL
DS-D5CxxRB A/B
DS-D5BxxRB C/D
The Hikvision Interactive Flat Panel delivers 4K ultra-clear display, smooth multi-touch writing, and wireless screen sharing for smarter meetings and classrooms. With built-in Android, optional OPS support, and integrated camera, mic, and speakers, it provides a complete all-in-one collaboration solution.
● Pixel Configuration :
● Pixel Pitch (mm) :
● Cabinet Size (W x H, mm) :
● Brightness (nits) :
4K UHD (3840 × 2160) DLED LCD
~0.124–0.164 mm
~1492 × 896, ~1650 × 928,
~1895 × 1066
~400 (typical), up to 450 for Performance models
● Cabinet Frame :
● LED Module Shell :
● Maintenance Mode :
Slim aluminum/metal frame
DLED backlit LCD panel
AluminumRear access service
.png)
INDOOR LED DISPLAY
DS-D4xxxBW-2FC

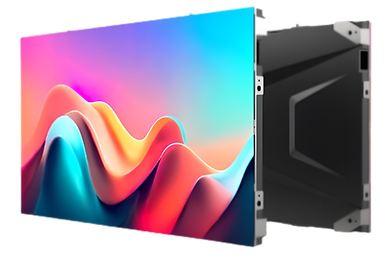

The Ultra Series Indoor LED Display is designed for premium visual performance and seamless presentation. Featuring ultra-thin cabinets, fine pixel pitch options, high refresh rates, and superior grayscale processing, it delivers vibrant colors and crystal-clear images with smooth, flicker-free viewing.
● Pixel Configuration :
● Pixel Pitch (mm) :
● Cabinet Size (W x H, mm) :
● Brightness (nits) :
SMD 3-in-1 (RGB)
P1.2 / P1.5 / P1.8 / P2.5
600 × 337.5 mm (16:9 ratio)
600 – 1000 nits
● Cabinet Frame :
● LED Module Shell :
● Maintenance Mode :
Die casting Aluminum
High-strength PC / fire-resistant material
Front maintenance (magnetic module design)
.png)
DS-D40xxNW/CW-2F
The Solid Series Indoor LED Display is built for reliable performance and versatile installation in commercial environments. Designed with durable cabinets and stable power management, it delivers clear visuals, balanced brightness, and smooth playback for everyday business applications.
● Pixel Configuration :
● Pixel Pitch (mm) :
● Cabinet Size (W x H, mm) :
● Brightness (nits) :
SMD 3-in-1 (RGB)
P1.5 / P1.8 / P2.0 / P2.5
640 × 480 mm
600 – 800 nits
● Cabinet Frame :
● LED Module Shell :
● Maintenance Mode :
Steel cabinet / reinforced metal structure
High-strength PC material (flame-retardant)
Front or rear maintenance (model dependent)
.png)
DS-D40xxAW/CW-2FQ
The Solid Plus Series Indoor LED Display is engineered for enhanced visual performance and refined display quality in professional environments. It offers improved brightness, excellent color uniformity, and smooth image processing to deliver sharp, vibrant, and flicker-free visuals.
● Pixel Configuration :
● Pixel Pitch (mm) :
● Cabinet Size (W x H, mm) :
● Brightness (nits) :
SMD Triad LED
P1.25 / P1.5625
600 × 337.5 × ~29.5
~800 nits
● Cabinet Frame :
● LED Module Shell :
● Maintenance Mode :
Aluminium die‑casting frame
SMD Triad LED w/ protective coating
Front service
DS-D40xxCS 1F
The Value Series LED cabinet is Hikvision entry level indoor models. At an affordable price, it’s module cable free
design which can ease installation a great deal, as well as help to prevent lamp dropping caused during lamp
board installation.
● Pixel Configuration :
● Pixel Pitch (mm) :
● Cabinet Size (W x H, mm) :
● Brightness (nits) :
SMD LED
1.25, 1.538, 1.86, 2.0, 2.5
640 × 480
600
● Cabinet Frame :
● LED Module Shell :
● Maintenance Mode :
Die casting Aluminum
Aluminum
Full front maintenance
OUTDOOR FIXED LED
DS-D42xxFO GLF
LumiUltra Series is Hikvision’s high end outdoor LED cabinets which features high brightness, energy saving and supports
front & rear maintenance at the same time.
● Pixel Configuration :
● Pixel Pitch (mm) :
● Cabinet Size (W x H, mm) :
● Brightness (nits) :
Gold Wire SMD LED
6.67, 8, 10
960 × 960
8,500/10,000
● Cabinet Frame :
● LED Module Shell :
● Maintenance Mode :
Aluminum Profile
Aluminum
Both front and rear maintenance
DS-D42xxCD 1AAB DS
DS-D42xxCF 1AAB
LumiFit Series is Hikvision’s middle end outdoor LED cabinets which provides competitive performance, and is suitable for all
kinds of outdoor application scenarios
● Pixel Configuration :
● Pixel Pitch (mm) :
● Cabinet Size (W x H, mm) :
● Brightness (nits) :
Gold Wire SMD LED
3.91, 4.81
500 × 500, 500 x 1000
4,500
● Cabinet Frame :
● LED Module Shell :
● Maintenance Mode :
Aluminum Profile
Aluminum
Both front and rear maintenance
DS-D42xxCO 2APA
LumiSquare Series is Hikvision’s entry level outdoor LED cabinets with aluminum profile cabinet frame. It’s suitable for all kinds
of scenarios like billboards, building façade advertising screens, etc.
● Pixel Configuration :
● Pixel Pitch (mm) :
● Cabinet Size (W x H, mm) :
● Brightness (nits) :
Gold Wire SMD LED
5.71, 6.67, 8, 10
960 × 960
6,000/6,500
● Cabinet Frame :
● LED Module Shell :
● Maintenance Mode :
Aluminum Profile
Plastic
Both front and rear maintenance
LED POSTER DISPLAY
DS-D4212MI 070H(B)
DS-D4215MI 070H(B)
DS-D4218MI 070H(B)
Hikvision LED poster display is an integrated device with built in LED controller and information releasing system. Aside from
its convenient installation, versatile deployment, robust surface protection, and most importantly, smart advertisement desig n,
it is suitable for scenarios such as retail and buildings, replacing traditional paper posters, roll ups, and light boxes.
● Pixel Pitch (mm) :
● Resolution
● Brightness (nits) :
1.25, 1.5625, 1.875
480× 1,350, 384 × 1,080 320× 900
600
≥3,000 : 1
3,840
Die casting Aluminum
● Contrast Ratio:
● Refresh Rate (Hz):
● Cabinet Material:
TRANSPAPRENT LED
DS-D4239TI SLC DS-D4239TI SHC
LumiFit Series is Hikvision’s middle end outdoor LED cabinets which provides competitive performance, and is suitable for all
kinds of outdoor application scenarios
● Pixel Configuration :
● Pixel Pitch (mm) :
● Cabinet Size (W x H, mm) :
SMD Triad LED
Horizontal 3.9,
vertical 7.8 Cabinet Size
1,000 × 1,000, 1,000 × 1,500, 750 × 750
2,000, 5,000
● Brightness (nits)
● Contrast Ratio
● Protection
● Cabinet Material
2,000, 5,000
3,000 : 1
IP43
Aluminum alloy
LED ALL IN ONE DISPLAY
LED all in one display is an optimal choice for display sizes around 100 to 200 inches, suitable for all kinds of scenarios like
shopping malls, commercial buildings, conference rooms, etc.
Model Pixel Pitch(mm) Size
DS-D4212FI 108H 1.2 108”
DS-D4215FI 135H 1.5 135”
DS-D4218FI 162H 1.8 162”
All in one Design
-Built in LED controller and operation
system
Flexible Installation
-Support both mobile floor standing
bracket and wall mounted bracket
Outstanding Display
-Unique image enhancement technologies: PixCode , PixMaster, ColorMaster , etc
Dual System
-Built in Android and Windows dual system
-One key switch between dual systems
4 Display Modes
-standard, gentle, cinema and meeting
mode.
Wireless Projection
- Up to 4 terminals simultaneous projection for PC, Android and IOS
